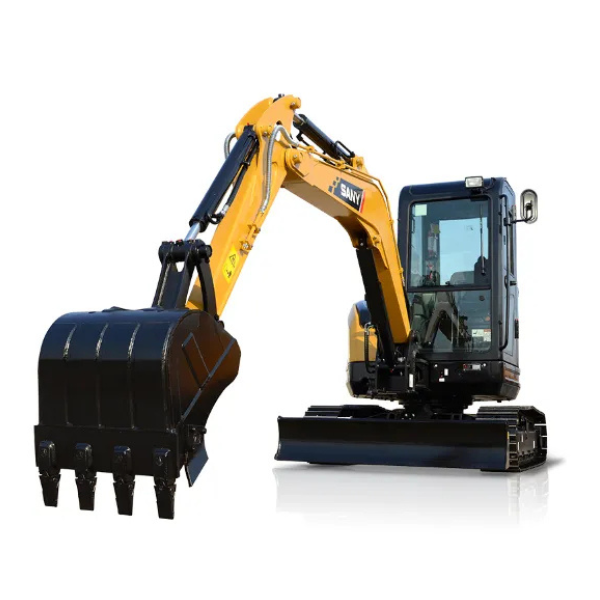

2.5 – 5T Mini Excavator 15.2 – 29.1 kW
Lower Costs For Better Performance
0.06 – 0.15 m³ |
15.2 – 29.1 kW |
2.68 – 5.3 T |
| Bucket Capacity | Engine Power | Operating Weight |

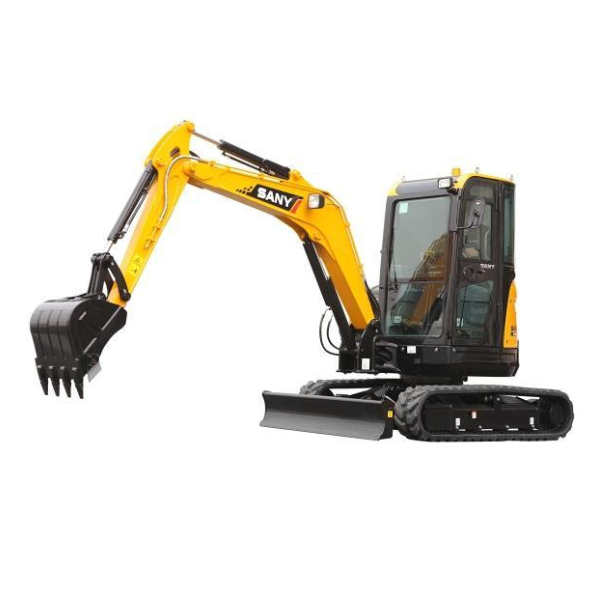

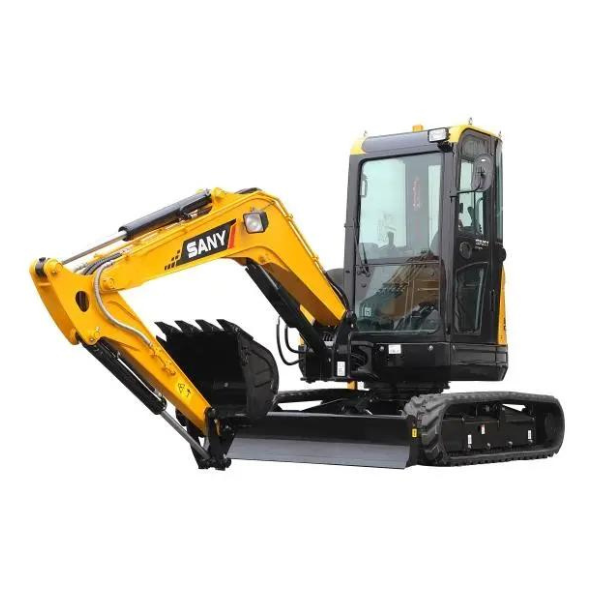

SANY’s 2.5–5 ton mini excavator range typically includes the SY26U, SY35U, and SY50U models. These machines feature Yanmar diesel engines, advanced hydraulics, compact dimensions, and excellent digging performance for construction, utilities, landscaping, and civil works.
Port Moresby, Lae, Mt Hagen, Kokopo, Goroka, Tabubil
· Strong power ensures reliability in tough working conditions.
· The suspension seat with a higher backrest and adjustable wrist rest improves the comfortable operation experience.
· Two sets of AUX pipelines, QC pipeline and boom holding match various requirements of attachments.
· Load sensitive flow distribution system: Senses micro changes of the load and adjusts flow and pressure in real-time; optimized main valve core for perfect synergism between actuators and precise control.
| Operating Weight | 2,680 – 5,300 kg |
| Engine | Yanmar Diesel |
| Engine Power | 15.2 – 29.1 kW (20 – 39 hp) |
| Engine Displacement | 1.1 – 2.2 L |
| Bucket Capacity | 0.06 – 0.15 m³ |
| Maximum Digging Depth | 2.8 – 3.6 m |
| Maximum Digging Reach | 4.7 – 6.0 m |
| Maximum Dumping Height | 3.0 – 4.0 m |
| Bucket Digging Force | 22 – 45 kN |
| Arm Digging Force | 12 – 24 kN |
| Travel Speed | 2.5 – 4.5 km/h |
| Swing Speed | 9 – 11 rpm |
| Gradeability | 30° |
| Fuel Tank Capacity | 35 – 80 L |
| Hydraulic Tank Capacity | 25 – 60 L |
| Auxiliary Hydraulic Circuit | Standard |
| Track Type | Rubber or Steel |
| Cab Type | Open Canopy or Enclosed Air-Conditioned Cab |
| Tail Swing | Zero Tail / Short Tail Swing |
| Blade | Standard Dozer Blade |
Engine Specifications
| Specification | Value |
|---|---|
| Engine Manufacturer | Yanmar |
| Engine Type | Water-cooled, 4-stroke diesel |
| Cylinders | 3 |
| Emission Standard | Stage V / Tier 4 Final |
| Rated Power | 20 – 39 hp |
| Starting System | 12V Electric Start |
| Cooling System | Liquid Cooled |
| Fuel Injection | Direct Injection |
Hydraulic System
| Specification | Value |
|---|---|
| Main Pump Type | Variable Displacement Piston Pump |
| Hydraulic Flow | 60 – 140 L/min |
| System Pressure | 24 – 28 MPa |
| Swing Motor | Piston Motor |
| Travel Motor | Variable Displacement Piston Motor |
| Auxiliary Circuit | AUX 1 & AUX 2 Available |
| Quick Hitch Compatible | Yes |
Dimensions
| Specification | Value |
|---|---|
| Overall Length | 4.3 – 5.4 m |
| Overall Width | 1.5 – 2.0 m |
| Overall Height | 2.4 – 2.7 m |
| Track Width | 300 – 400 mm |
| Ground Clearance | 290 – 350 mm |
| Tail Swing Radius | 850 – 1,500 mm |
| Dozer Blade Width | 1.5 – 2.0 m |
Standard Features
- Enclosed ROPS/FOPS safety cab
- Air conditioning
- LCD monitoring display
- LED work lights
- Pilot joystick controls
- Hydraulic quick coupler ready
- Auxiliary hydraulic piping
- Auto idle function
- Dozer blade
- Zero-tail swing design (selected models)
- Suspension operator seat
- Anti-theft security system
Common Attachments
- General Purpose Bucket
- Trenching Bucket
- Hydraulic Breaker
- Auger
- Grapple
- Ripper
- Tilt Bucket
- Compaction Wheel
- Hydraulic Quick Hitch
Typical Applications
- Residential construction
- Utility trenching
- Road maintenance
- Drainage works
- Landscaping
- Agriculture
- Demolition
- Civil infrastructure projects
- Pipeline installation

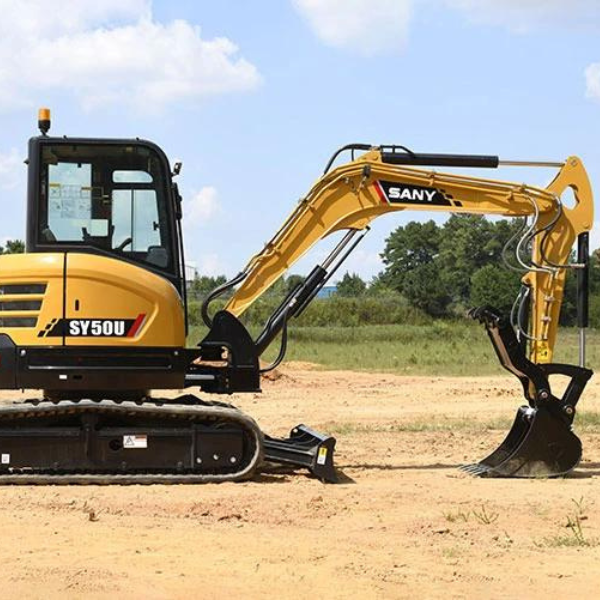

For a dealership brochure, the flagship machine in this category is the SANY SY50U (5 Ton), which delivers approximately 39 hp, 0.15 m³ bucket capacity, and over 3.5 m digging depth, making it one of the most capable compact excavators in the SANY mini range.
