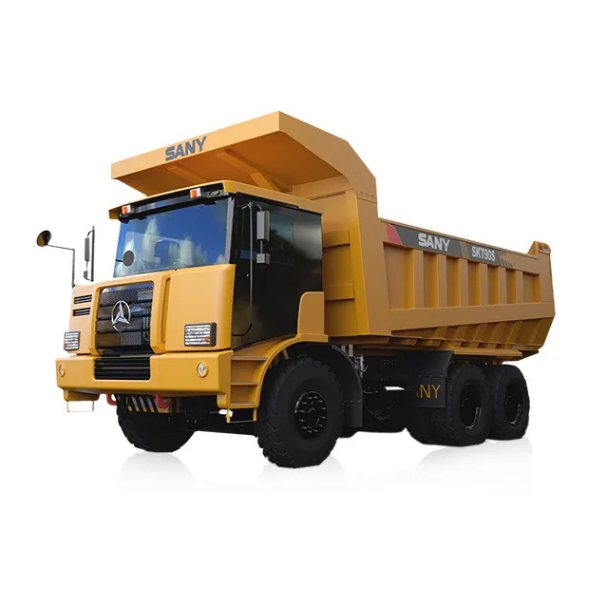

Off-Highway Mining Truck 60 – 100 T
SKT Series Diesel & Electric Trucks
60 – 100 T |
1800 – 3000 NM |
338 – 925 kW |
|
Load Weight
|
Maximum Torque | Total Power |
The SANY 60–100 ton mining truck range includes models such as the SRT55D (55–60T class) and SRT95C (95T class). These rigid-frame off-highway trucks are designed for open-pit mining, quarry operations, large earthworks, coal mines, and infrastructure projects.
Port Moresby, Lae, Mt Hagen, Kokopo, Goroka, Tabubil
· The newly designed low-stress and high-strength frame effectively prevents the fatigue breakage of the frame and reduces the overall stress level by 51% compared with competing products.
· The hydro-pneumatic suspension technology is applied to replace the traditional leaf spring structure, remarkably improve the life and comfort of the machine, thoroughly solve the frequent breakage problem of front suspension leaf springs in the industry, and promote the attendance rate of the machine. The hydro-pneumatic suspension features excellent shock-absorbing and damping performance to remarkably improve the load application of the frame and prolong the life of the frame.
· Front oil and gas suspension, buffer, and vibration reduction are significantly improved; greatly reducing the impact force of the frame, cab, and other heavy parts, reduce the occurrence of various faults, and extend the life of the vehicle; thoroughly solve the fracture problem of the front plate spring.
· The vehicle steering makes it easier to solve the problem of heavy mechanical steering caused by heavy trucks in the industry; equipped with emergency steering, to solve the problem of steering failure after engine flameout or steering pump failure.
· – SANY intelligent control module with an electrical fault self-diagnosis system can troubleshoot some problems automatically.
· – 10 “central control screen equipped with reversing camera, Bluetooth connection, compatible with intelligent mine management system. The built-in GPS module can effectively monitor the vehicle operation.
| Hydraulic Disc Brake | |
| Parking Brake | Spring Applied |
| Emergency Brake | Standard |
| Retarder Brake | Hydraulic Transmission Retarder |
| Cooling System | Oil-Cooled Rear Brakes |
The braking package is designed for safe operation on long downhill haul roads.
Tires
| Specification | Typical Range |
|---|---|
| Tire Type | Radial Mining Tires |
| Tire Size | 24.00R35 – 27.00R49 |
| Tire Configuration | Dual Rear Drive |
Large mining tires provide high load-carrying capacity and traction in difficult terrain.
Dimensions
| Specification | Typical Range |
|---|---|
| Overall Length | 8.5 – 10.5 m |
| Overall Width | 5.0 – 6.1 m |
| Overall Height | 4.2 – 4.9 m |
| Ground Clearance | 450 – 650 mm |
Cab & Operator Station
| Specification | Typical Range |
|---|---|
| Cab Type | ROPS/FOPS Certified |
| Air Conditioning | Standard |
| Suspension Seat | Standard |
| LCD Monitoring Display | Standard |
| Reverse Camera | Optional |
| Automatic Fire Suppression | Optional |
| Tire Pressure Monitoring | Optional |
SANY mining truck cabs are designed for long shifts with enhanced visibility and reduced operator fatigue.
Standard Features
- Cummins high-horsepower engine
- Allison automatic transmission
- Heavy-duty mining frame
- Independent front suspension
- Hydraulic retarder braking
- Large-capacity dump body
- ROPS/FOPS safety cab
- Automatic lubrication system (optional)
- Fire suppression system (optional)
- Payload weighing system (optional)
- Tire pressure monitoring system (optional)
Applications
- Open-pit mining
- Gold mining
- Copper mining
- Coal mining
- Quarry operations
- Large earthmoving projects
- Dam construction
- Infrastructure development
Typical SANY SRT95C (95 Ton)
| Specification | Value |
|---|---|
| Rated Payload | 95 T |
| Operating Weight | 65 T |
| Gross Vehicle Weight | 160 T |
| Engine Power | 783 kW (1,050 hp) |
| Maximum Torque | 4,629 Nm |
| Body Capacity | 42 m³ (Struck) / 60 m³ (Heaped) |
| Top Speed | 48 km/h |
| Gradeability | 30% |
| Tire Size | 27.00R49 |
Key Advantages
- High payload capacity (60–100 tonnes)
- Proven Cummins powertrain
- Allison automatic transmission
- Low operating cost per tonne hauled
- Excellent durability in mining conditions
- Advanced braking and suspension systems
- High productivity for large-scale mining operations
These trucks are ideal for PNG mining operations, including gold, copper, nickel, limestone, and quarry projects where high-volume material movement is required.
