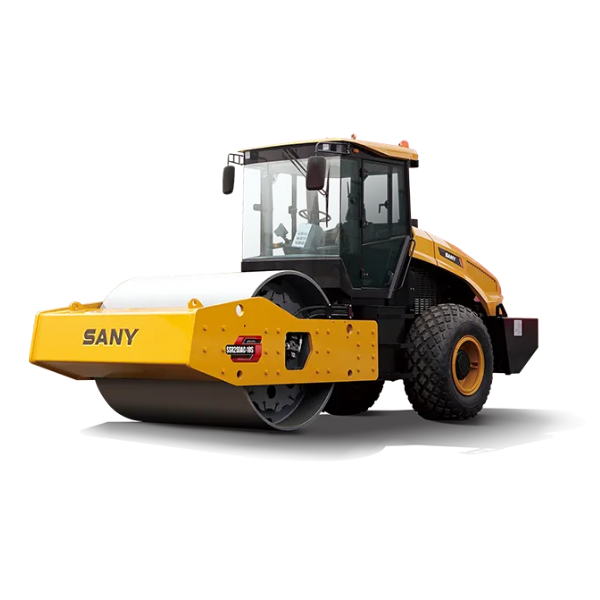

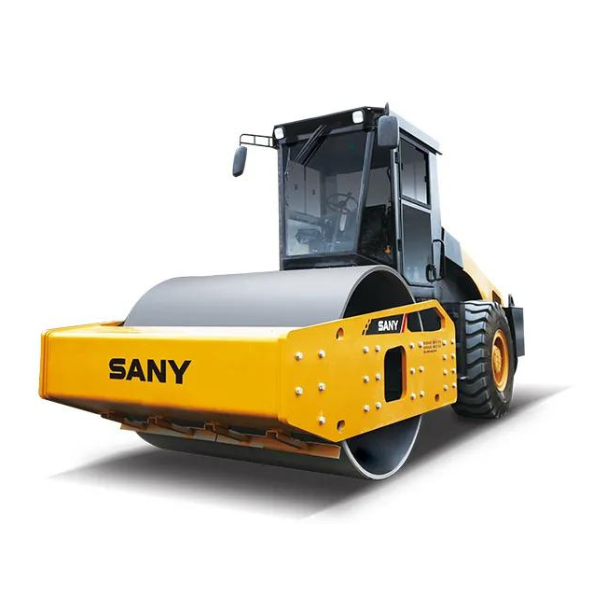

Single Drum Roller (Single Drive) 93 – 147 kW
Competence: One Of A Kind; Maintenance: Once For A Life
246/124 – 416/295 kN |
93 – 147 kW |
10000 – 26000 kg |
|
Centrifugal Force
|
Rated Power | Operating Weight |
The SANY Single Drum Roller (Single Drive) range typically includes models such as the SSR120C, SSR150C, and SSR180C, designed for soil, gravel, road base, and large earthworks compaction. These machines are widely used in road construction, mining, airports, and civil infrastructure projects.
Port Moresby, Lae, Mt Hagen, Kokopo, Goroka, Tabubil
· 10% greater excitation force than other products in the same category resulting in 16.7% greater production.
· The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
· The engine air filter is raised and the air is filtered twice to protect the engine.
· The hydraulic system contains three stage filtration.
· Cab mounted on vibration damping mounts
· Cab temperature control
· Operator control forces have been reduced
· Rounded bumpers front and rear
· The large rear glass and sloped hood for greater visibility
Engine
| Specification | Typical Range |
|---|---|
| Engine Type | Turbocharged Water-Cooled Diesel |
| Engine Brand | Cummins / Isuzu |
| Engine Power | 93 – 133 kW (125 – 180 hp) |
| Number of Cylinders | 4 – 6 |
| Fuel Tank Capacity | 180 – 300 L |
| Emission Standard | Tier III / Tier IV |
Operating Performance
| Specification | Typical Range |
|---|---|
| Operating Weight | 12,000 – 18,000 kg |
| Drum Width | 2,130 mm |
| Drum Diameter | 1,500 – 1,600 mm |
| Travel Speed | 0 – 12.5 km/h |
| Gradeability | 45 – 53% |
| Static Linear Load | 32.9 – 58.2 kg/cm |
Vibratory System
| Specification | Typical Range |
|---|---|
| Vibration Frequency | 32 – 36 Hz |
| High Amplitude | 1.8 – 2.0 mm |
| Low Amplitude | 0.9 – 1.0 mm |
| Centrifugal Force | 178 – 380 kN |
| Vibration Type | Dual Amplitude Hydraulic Vibration |
Dimensions
| Specification | Typical Range |
|---|---|
| Overall Length | 5.8 – 6.5 m |
| Overall Width | 2.29 – 2.32 m |
| Overall Height | 3.2 – 3.3 m |
| Wheelbase | 3.0 – 3.3 m |
| Ground Clearance | 400 – 500 mm |
Drive System
| Specification | Typical Range |
|---|---|
| Drive Type | Single Drive |
| Transmission | Hydrostatic |
| Steering | Articulated Hydraulic Steering |
| Drum Type | Smooth Drum |
| Drum Drive | Hydraulic Motor |
Cab & Operator Station
| Specification | Typical Range |
|---|---|
| Cab Type | Enclosed ROPS/FOPS Cab |
| Air Conditioning | Standard |
| Suspension Seat | Standard |
| LCD Monitor | Standard |
| Rear View Mirrors | Standard |
| LED Work Lights | Standard |
| Operator Visibility | 360° Optimized Design |
Standard Features
- Hydrostatic transmission
- Dual-amplitude vibration system
- Articulated steering
- Heavy-duty drum scrapers
- High-efficiency compaction system
- Maintenance-free vibration bearings
- ROPS/FOPS safety cab
- Air-conditioned operator station
- Excellent visibility and operator comfort
- Fuel-efficient diesel engine
Applications
- Highway construction
- Road base compaction
- Airport runway construction
- Dam and embankment projects
- Mining haul roads
- Industrial yards
- Large-scale earthworks
- Soil, gravel, and aggregate compaction
Typical SANY 12-Ton Single Drive Roller (SSR120C)
| Specification | Value |
|---|---|
| Operating Weight | 12,000 kg |
| Engine Power | 93 – 119 kW |
| Drum Width | 2,130 mm |
| Frequency | 32/36 Hz |
| Amplitude | 1.8/0.9 mm |
| Centrifugal Force | 280/178 kN |
| Travel Speed | Up to 12.5 km/h |
Typical SANY 18-Ton Single Drive Roller (SSR180C)
| Specification | Value |
|---|---|
| Operating Weight | 18,000 kg |
| Engine Power | 133 kW |
| Drum Width | 2,130 mm |
| Frequency | 36 Hz |
| Amplitude | 2.0 mm |
| Centrifugal Force | 380/275 kN |
| Travel Speed | 10.5 km/h |
