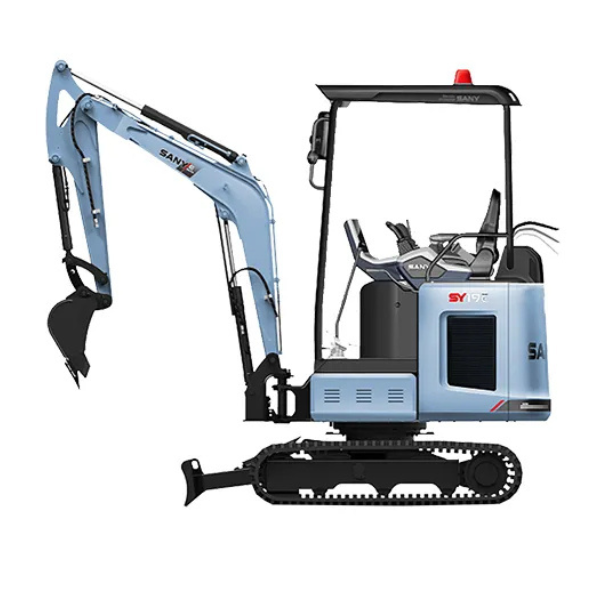

Electric Mini Excavator 1.95 T 10 kW
Powering Progress, Sustaining The Planet
0.04 m³ |
10 kW |
1.95 T |
| Bucket Capacity | Engine Power | Operating Weight |
Port Moresby, Lae, Mt Hagen, Kokopo, Goroka, Tabubil
· The shortest charging time is less than one hour. Various charging modes are compatible with civilian electricity, industrial electricity, car charging piles, and electric vehicles.
· The large-capacity battery can last 4-6 hours for a full charge.
· High-torque permanent magnet synchronous motor, electric drive + hydraulic coordinated control, fast action response, high action accuracy, smoother operation, pure motor output efficiency 95%, 3% higher efficiency than fuel version, 30% lower energy consumption than fuel version.
· Vehicle insulation testing, high-voltage interlocking, over-temperature protection, charging safety testing, safe construction without dead ends, pure electric, zero emissions, optional maintenance-free bushings, vehicle-mounted Internet of Things, and a new touch screen.
Comparison to a Diesel Mini Excavator
The SY19E’s 15 kW peak electric motor delivers performance comparable to a 1.8–2.0 tonne diesel excavator equipped with engines such as the Yanmar 3TNV80 or Kubota D902, but with:
- Instant electric torque
- Zero emissions
- Much lower noise
- Up to 80% lower maintenance costs
- No fuel costs
For a dealership brochure or quotation, the key motor specification to highlight is:
Permanent Magnet Synchronous Motor – 15 kW Peak Power, 10 kW Continuous Power, 72 Nm Max Torque, powered by a 22 kWh Lithium Iron Phosphate battery.
Typical Applications
- Utility trenching
- Landscaping
- Indoor demolition
- Building maintenance
- Cemetery and park works
- Urban construction projects
- Warehouse and factory construction where emissions are restricted
| Operating Weight | 1,965 kg |
| Bucket Capacity | 0.04 m³ |
| Continuous Motor Power | 10 kW |
| Peak Motor Power | 15 kW |
| Maximum Torque | 72 Nm |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Battery Capacity | 22 kWh |
| Battery Voltage | 268.8 V |
| Battery Rating | 82 Ah |
| Travel Speed | 2.3 – 3.2 km/h |
| Swing Speed | 10 rpm |
| Gradeability | 50.6% |
| Bucket Digging Force | 15.2 kN |
| Arm Digging Force | 9.2 kN |
Dimensions
| Dimension | Value |
|---|---|
| Transport Length | 3.624 m |
| Width (Retracted/Extended) | 980 mm / 1,350 mm |
| Height | 2.41 m |
| Track Width | 230 mm |
| Tail Swing Radius | 920 mm |
| Undercarriage Length | 1,585 mm |
Working Range
| Specification | Value |
|---|---|
| Maximum Digging Depth | 2,360 mm |
| Maximum Digging Reach | 4,000 mm |
| Maximum Digging Height | 3,665 mm |
| Maximum Dumping Height | 2,635 mm |
| Maximum Vertical Digging Depth | 2,215 mm |
| Minimum Swing Radius | 1,655 mm |
Battery & Charging
| Specification | Value |
|---|---|
| Runtime | 3–6 hours depending on workload |
| DC Fast Charge | ~1.5 hours |
| AC Industrial Charge (380V) | ~2.5 hours |
| Domestic Charge (220–240V) | ~9 hours |
| Charge Cycles | Up to 3,500 full cycles |
Hydraulic System
- Load-sensing hydraulic system
- Variable displacement axial piston pump
- Maximum oil flow: 60 L/min
- Maximum system flow: 90 L/min
- Boom circuit pressure: 245 bar
- Drive circuit pressure: 245 bar
