Below 2.5T Mini Excavator 14.6 kW
No Job Site Is Too Tight
0.04 m³ |
14.6 kW |
Below 2.5 T |
| Bucket Capacity | Engine Power | Operating Weight |

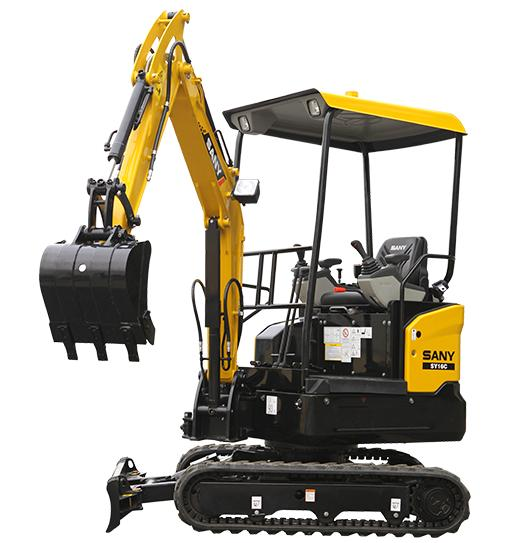

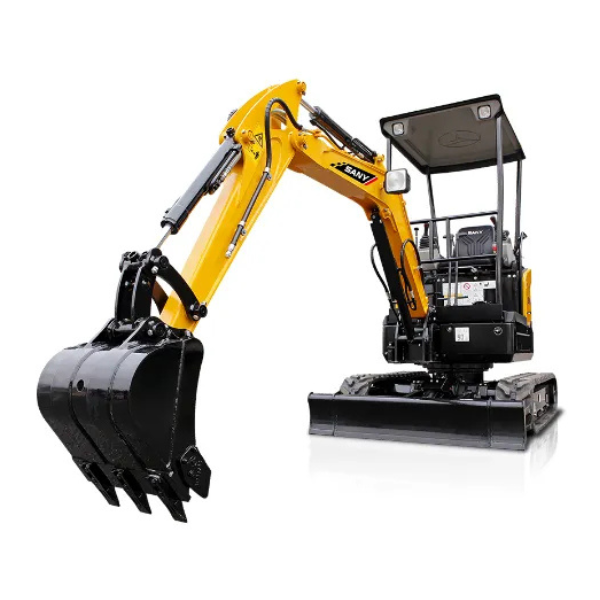

SANY’s mini excavator lineup below 2.5 tonnes includes the SY10U, SY16C, SY18C. These models are designed for landscaping, utilities, trenching, residential construction, and confined-space work.
Port Moresby, Lae, Mt Hagen, Kokopo, Goroka, Tabubil
Superior Performance
· More than 2000 hours of excavation field experiment, and over 800,000 times key components fatigue test.
Superior Adaptability
· Zero tail, retractable undercarriage, and swing boom make operating in corners and other tight spaces easier.
Easy Operation
· The load-sensitive hydraulic system accurately matches the engine with the main pump for smooth movement coordination.
Strong Power
· Exclusive Yanma high-power engine, digging, and walking are more powerful.
| Operating Weight | 1.0 – 2.5 tonnes |
| Engine Type | 3-cylinder diesel engine (or electric motor for electric models) |
| Engine Power | 10 – 20 kW (13 – 27 hp) |
| Bucket Capacity | 0.02 – 0.08 m³ |
| Maximum Digging Depth | 1.7 – 2.8 m |
| Maximum Digging Reach | 3.0 – 4.8 m |
| Maximum Dumping Height | 2.0 – 3.5 m |
| Travel Speed | 2 – 5 km/h |
| Swing Speed | 8 – 12 rpm |
| Gradeability | Up to 30° (58%) |
| Ground Pressure | 25 – 35 kPa |
| Hydraulic Flow | 25 – 70 L/min |
| Fuel Tank Capacity | 15 – 35 L |
| Track Width | 180 – 300 mm |
| Overall Width | 700 – 1,500 mm |
| Overall Height | 2.0 – 2.5 m |
| Tail Swing | Conventional, Reduced, or Zero Tail Swing |
| Cab Type | Open Canopy or Enclosed Cabin |
| Auxiliary Hydraulics | Standard |
| Attachments | Bucket, Auger, Breaker, Grapple, Ripper, Compactor |
Standard Features
- Hydraulic pilot controls
- Adjustable operator seat
- Retractable undercarriage (on selected models)
- Auxiliary hydraulic lines
- Dozer blade
- ROPS/FOPS operator protection
- LED work lights
- Rubber or steel tracks
- Anti-theft key system
- Easy maintenance access
Common Applications
- Trenching
- Landscaping
- Utility installation
- Residential construction
- Road maintenance
- Drainage works
- Demolition
- Agriculture and plantation work
Typical Engine Specifications (Diesel Models)
| Specification | Typical Value |
|---|---|
| Engine Make | Yanmar, Kubota, Perkins, Isuzu, or equivalent |
| Number of Cylinders | 3 |
| Fuel Type | Diesel |
| Cooling System | Water-cooled |
| Displacement | 0.8 – 1.2 L |
| Rated Power | 13 – 27 hp |
| Emission Standard | Tier 4 Final / Stage V |
| Starting System | Electric Start (12V) |
