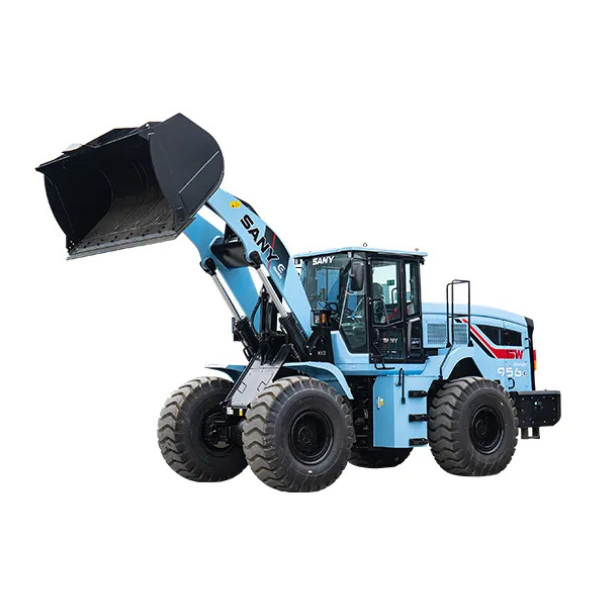

Electric Wheel Loader 19 T 2.7-5 m³ Bucket Capacity
Charge Forward, Load More
19 T |
2.7-5 m³ |
5.8 T |
|
Operating Weight
|
Bucket Capacity | Rated Payload |
SANY’s electric wheel loader range includes models such as the SW956E, SW960E, and SW966E, designed for construction, mining, ports, quarries, and material handling operations. These loaders provide zero emissions, lower operating costs, reduced noise, and high-performance electric drivetrains.
Port Moresby, Lae, Mt Hagen, Kokopo, Goroka, Tabubil
· Braking System: Dual-pipe full hydraulic service braking system, sensitive response and low failure rate.
· Axles：heavy-duty drive axle with strong bearing capacity and low failure rate.
· Frame:High-strength frame; double tapered roller bearings at the hinges.
· Battery Safety: Reasonable layout; in line with the safety requirements of the standard GB38031; when special circumstances such as collision and extrusion occur, the battery components will not have the danger of shell rupture, fire or explosion, ensuring the safety of the driver’s life.
· Online Monitoring: Big data multiple early warning, fault prediction; client APP pushes information in real time to ensure the safety of people and equipment.
· High-power permanent magnet synchronous motor, fast dynamic response.
· Two-speed gearbox, higher transmission efficiency.
· Integrated FNR function pilot joystick, smooth and fast shifting.
· Using silicone oil mounting technology, the vibration frequency of the cab is reduced to 1Hz.
· Vibration of electric drivetrain system is reduced 30% compared with fuel loader.
· The seat design adopted ergonomic design, which is more comfortable and convenient.
· High-power dual-purpose air conditioner, heating and cooling time is reduced 30%.
Power System
| Specification | Typical Range |
|---|---|
| Drive Type | Full Electric |
| Motor Type | Permanent Magnet Synchronous Motor |
| Peak Motor Power | 225 – 240 kW |
| Peak Torque | Up to 2,800 Nm |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Battery Capacity | 282 – 424 kWh |
| Fast Charging | 20%–80% in approximately 50 minutes |
| Operating Runtime | 6 – 10 hours |
| Regenerative Braking | Standard |
Operating Performance
| Specification | Typical Range |
|---|---|
| Operating Weight | 19 – 24 tonnes |
| Rated Payload | 5.8 – 6.8 tonnes |
| Bucket Capacity | 3.2 – 5.0 m³ |
| Straight Tipping Load | 14.5 – 16.5 tonnes |
| Full Turn Tipping Load | 12.5 – 14 tonnes |
| Travel Speed | Up to 40 km/h |
Hydraulic System
| Specification | Typical Range |
|---|---|
| Hydraulic Type | Load Sensing Hydraulic System |
| Steering System | Articulated Hydraulic Steering |
| Service Brake | Full Hydraulic Disc Brake |
| Parking Brake | Spring Applied, Hydraulic Release |
| Auxiliary Hydraulics | Available |
Dimensions
| Specification | Typical Range |
|---|---|
| Overall Length | 8.5 – 9.0 m |
| Overall Width | 3.0 m |
| Overall Height | 3.5 – 3.7 m |
| Wheelbase | 3.3 – 3.6 m |
| Turning Radius | 6.0 – 6.5 m |
| Ground Clearance | 400 – 500 mm |
Cab & Operator Station
| Specification | Typical Range |
|---|---|
| Cab Type | Fully Enclosed ROPS/FOPS Cab |
| Air Conditioning | Standard |
| Suspension Seat | Standard |
| LCD Monitoring Display | Standard |
| 360° Camera System | Available |
| LED Work Lights | Standard |
| Noise Reduction | Up to 18 dB quieter than diesel loaders |
Standard Features
- Zero emissions operation
- High-efficiency electric drivetrain
- Regenerative braking system
- Fast charging capability
- Reduced maintenance requirements
- Low noise operation
- Lower energy costs compared to diesel machines
- Intelligent battery management system
- Real-time machine monitoring
- Heavy-duty axles and reinforced frame
Applications
- Construction sites
- Mining operations
- Quarries
- Ports and terminals
- Waste and recycling facilities
- Industrial material handling
- Warehousing and logistics
- Municipal projects
Typical SANY SW956E
| Specification | Value |
|---|---|
| Operating Weight | 20 tonnes |
| Rated Payload | 5.8 tonnes |
| Bucket Capacity | 3.2 – 3.5 m³ |
| Battery Capacity | 282 or 350 kWh |
| Peak Power | 240 kW |
| Peak Torque | 2,800 Nm |
| Runtime | 6 – 10 hours |
| Top Speed | 40 km/h |
Key Advantages
- No diesel fuel consumption
- Significantly lower operating costs
- Reduced carbon emissions
- Lower noise and vibration
- Fast charging with minimal downtime
- Comparable performance to traditional 5–6 tonne payload diesel wheel loaders
